Chapter 4: Development Board Setup
Factory Default Switch Settings
Factory Default Switch Settings
This section shows the factory switch settings for the Arria II GX FPGA development
board, 6G edition. Figure 4–1 shows the switch locations and the default position of
each switch on the top side of the board.

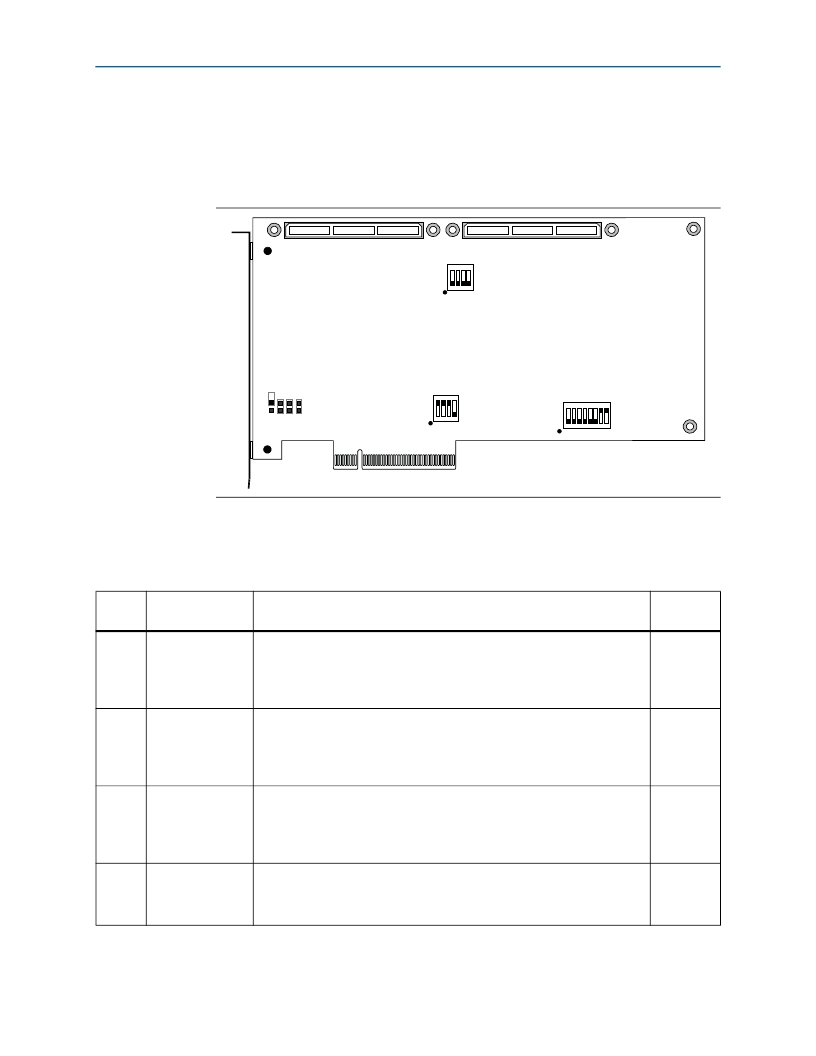

Figure 4–1. Switch Locations and Default Settings on the Board Top
Use r
DIP Swi t ch
ON
1 2 3 4
SW2
PCIe MODE
DIP Swi t ch
ON
ON = 0
OFF = 1
Boa r d Se tt ings
DIP Swi t ch
J9
ON
ON = 0
JTAG Con tr ol
Jumpe r s
1 2 3 4
SW3
1 2 3 4 5 6 7 8
SW4
OFF = 1
To restore the switches to their factory default settings, perform the following steps:
1. Set DIP switch bank (SW3) to match Table 4–1 and Figure 4–1 .
Table 4–1. SW3 Dip Switch Settings
Switch
Board
Label
Function
Default
Position
Switch 1 has the following options:
1
PCIe MODE
■
When on, the PCIe card PRSNT2_x1 signal is connected to PCIe card
PRSNT1 signal.
On
■
When off, the PCIe card PRSNT2_x1 signal floats.
Switch 2 has the following options:
2
PCIe MODE
■
When on, the PCIe card PRSNT2_x4 signal is connected to PCIe card
PRSNT1 signal.
On
■
When off, the PCIe card PRSNT2_x4 signal floats.
Switch 3 has the following options:
3
PCIe MODE
■
When on, the PCIe card PRSNT2_x8 signal is connected to PCIe card
PRSNT1 signal.
On
■
When off, the PCIe card PRSNT2_x8 signal floats.
Switch 4 has the following options:
4
PCIe MODE
■
When on, the switch is ignored. It is not connected.
Off
■
When off, the switch is ignored. It is not connected.
Arria II GX FPGA Development Kit, 6G Edition User Guide
